€ 1.495,00

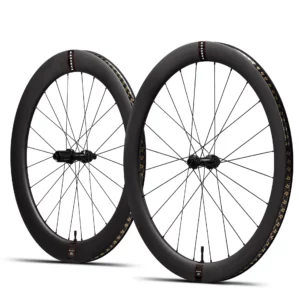

The DT Swiss ARC 1600 Spline wheels are designed to deliver exceptional aerodynamic performance. Developed in collaboration with Swiss Side, they are ideal for road, time trial and triathlon. The deep carbon rim ensures low drag while maintaining optimum stiffness. The 350 Spline hub with 36T Ratchet system guarantees a long life and minimal maintenance.
General characteristics
Use: Road / CLM / Triathlon
Model: ARC 1600
Wheel size: 28 inch (700c road standard)
Rim Type: Clincher (lug rim for tires)
Tubeless Ready: Yes
Rim height: 50 mm / 62 mm
Inner width: 20 mm
External width: 26.5 mm
Hub axle system: Thru axle
Front: 12 x 100 mm
Rear: 12 x 142 mm
Recommended tire: 25mm or 28mm
Hub Type: 350 Spline
Freewheel system: Ratchet 36T
Freewheel Body: Shimano Road 9/10/11/12 speed or SRAM XDR RD. (AXDR)
Spokes: DT aero comp t-head
Tips: DT Pro Lock hidden aluminum
Valve hole: Presta / SV Ø 6.5 mm
Braking system: Center Lock Disc
Maximum recommended system weight: 120 kg (body weight + bike + equipment)
ASTM Classification: 1
Rim: Carbon
Hub: Aluminum
Radius: Stainless steel
Valve: Aluminum
Freewheel body: Aluminum
Color: Black
Weight (checked at the LVR Cycles workshop):
Before: 726 g
Rear: 859 g
The pair: 1585 g
Scope of delivery
ARC 1600 Spline DB 50mm Wheelset
2 Tubeless 23 mm tapes installed
2 Tubeless aluminum valves
DT Swiss Technologies
Aero +
Aero+ technology provides reduced drag, improved handling and increased efficiency. In collaboration with Swiss Side, DT Swiss has optimized the shape, rotation, steering torque and rolling resistance to achieve exceptional aerodynamic performance.
Tubeless Ready
Tubeless Ready offers exceptional performance, similar to tubulars, with the addition of sealant to prevent punctures. The choice is yours: mount DT Swiss wheels with or without an inner tube.
Pro Lock
The Pro Lock system uses a two-part adhesive liquid to secure the wheel nuts. Once the nuts are tightened, the glue reacts and hardens after 6 to 7 hours, ensuring a reliable and secure fit.
Bearings without play compensation
DT Swiss hubs use optimally preloaded bearings to minimize play and ensure maximum durability. This technology also allows for easier maintenance and improved hub weight.
Ratchet System
The Ratchet 36T system, with 36 pawls, optimizes bearing life and ensures easy maintenance, without the need for specialized tools. This system is the preferred choice of professional cyclists for its precision and durability.
